Four side moulderVH-M616HS
Device Picture
Main Technical Data
|
Model parameters |
VH-M616HS |
|
WORKING WIDTH（mm） |
25～160 |
|
WORKING THICKNESS（mm） |
8～120 |
|
WORKING TABLE LENGTH(mm) |
1500 |
|
FEEDING SPEED（m/min） |
6～36 |
|
MAIN SPINDLE DIAMETER（mm） |
∮40 |
|
SPINDLE SPEED（r/min） |
6500 |
|
AIR PRESSURE（Mpa） |
0.6 |
|
1st FIRST BOTTOM MOTOR（kw） |
4 |
|
RIGHT VERTICAL MOTOR（kw） |
5.5 |
|
LEFT VERTICAL MOTOR（kw） |
5.5 |
|
FIRST TOP MOTOR（kw） |
5.5 |
|
SECOND TOP MOTOR（kw） |
15 |
|
SECOND BOTTOM MOTOR（kw） |
15 |
|
BEAM LIFTING MOTOR（kw） |
0.55 |
|
FEED MOTOR（kw） |
4 |
|
LEFT DISCHARGE MOTOR POWER |
0.75 |
|
RIGHT DISCHARGE MOTOR POWER |
0.75 |
|
TOTAL MOTOR（kw） |
56.55 |
|
FIRST BOTTOM CUTTER DIAMETER（mm） |
∮125 |
|
RIGHT VERTICAL CUTTER DIAMETER（mm） |
∮125-∮160 |
|
LEFT VERTICAL CUTTER DIAMETER（mm） |
∮125-∮160 |
|
FIRST TOP CUTTER DIAMETER（mm） |
∮125-∮160 |
|
SECOND TOP CUTTER DIAMETER（mm） |
∮180-∮250 |
|
SECOND BOTTOM CUTTER DIAMETER（mm） |
∮180-∮250 |
|
FEED ROLLER DIAMETER（mm） |
∮140 |
|
SAW SHAFT SPEED(r/min) |
4500 |
|
SAW SHAFT DIAMETER |
∮50 |
|
DUST OUTLET DIAMETER（mm） |
∮140 |
|
DIMENSION（L*W*H mm） |
4450x1800x1720 |
|
MACHINE WEIGHT(KG) |
3500 |
Detail
ELECTRONIC/PNEUMATIC/CONTROL CONFIGURATION
Feed frequency converter
Frequency conversion digital display, feeding speed 6-36 m / min, easy to operate, reduce, energy saving, reduce mechanical variable speed wear.
Fast hatchable short material
This mechanism can effectively improve the smooth feeding of short material, and the auxiliary feeding wheel has the function of transmission, which makes the feeding more light, and the feeding wheel can be lifted to facilitate the replacement or adjustment of tool
Precision spindle
Each tool shaft is assembled and tested in the air conditioning room. Both ends are supported by imported SKF bearings, absolutely smooth operation of the tool shaft, to ensure the surface finish of the finished product.
The front button
In the front and back of the machine tool to add a switch and an emergency stop button, convenient debugging operation and adjustment
Heavy cutting gear box
The feeding wheel is driven by universal joint and gearbox to ensure no loss of power.Feeding is very smooth, strong transmission force, high feeding accuracy.
Universal joint drive
Chainless universal drive feed, accurate and firm, long service life, almost no maintenance.
Before and after the platen
The front and rear pressure plates can be adjusted separately, so that the wood can be firmly pressed against the work surface even if the thickness of the wood changes greatly.
Double panel
Left and right vertical axis for double panels, effectively ensure the verticality of processing.
Japan Four-axis Joint Machining Centre
All shaft frame, reducer and other accessories, the company is equipped with its own processing center to ensure the precision of accessories.

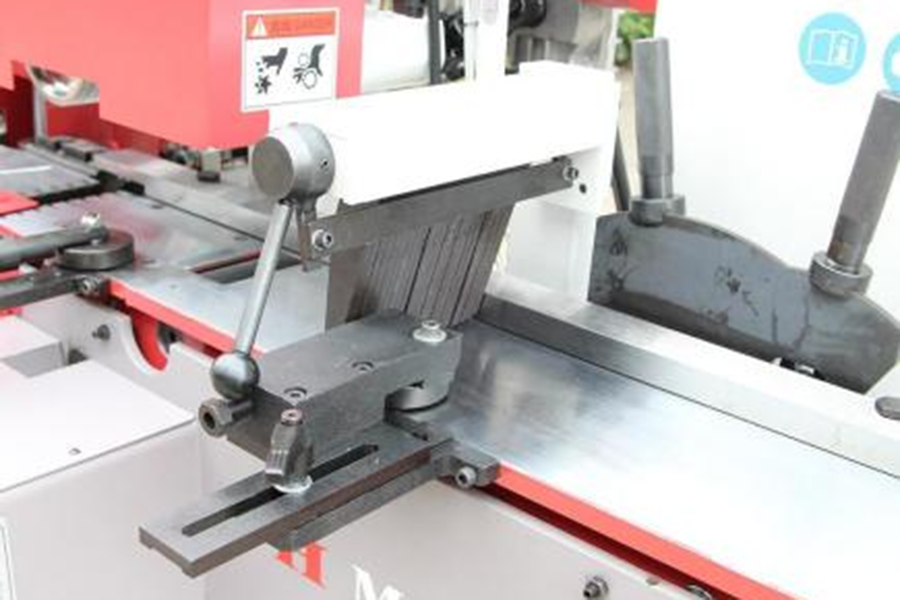

Rebound device:
The feeding port of the working
Table is equipped with anti-reverse rebound device.
Effective protection of operators in the production process caused by wood rebound damage.
Four side planer combined with the function of multi-slice sawing
can use thinner saw blade processing,saw kerf width reduced,save material, multi-slice processing,high efficiency and quality at one time.
Auxiliary discharging system
There are two groups of automatic discharging wheels behind the left saws,which are smooth and powerful
Processing Technic
Machine body has h high rigidity integrated
Machine body Was made of cast iron with shock absorption properties
Ensure smooth operation of cutter shaft and feed system.
Sophisticated pressing equipment
Meticulous production, to ensure that every part is nearly perfect
Japanese brand Four axis linkage machining center
All shaft frame, reducer and other accessories, the company is equipped with its own machining center processing, to ensure precision accessories
Main spindle with dynamic balance test
Each spindle is tested for movement balance. Equipped with imported SKF bearing to ensure high precision and smooth operation of the cutter shaft
