MXB3515A

Short Description:


Product Detail

Product Tags

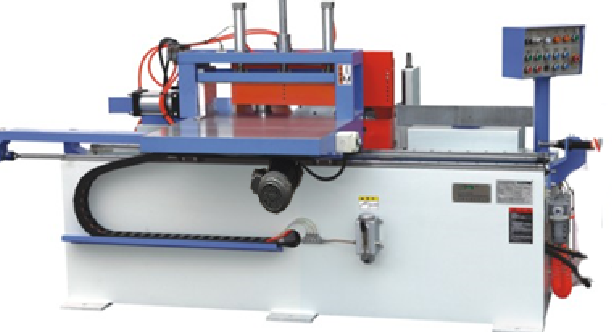

Device Picture

2121

Finger Joint (Inveter Motor drive)

Main Technical Data

Model parameters

MXB3515A

MAX.WORKING  THICKNESS(mm)

150

MAX.WORKING  THICKNESS(mm)

600

TABLE  SIZE(W*L)

760*850

MAIN   SAW  SPINDLE    DIA(mm)

Φ30

SHAPER  SPINDLE  DIA(rpm)

Φ70

SHAPER  BLADE  DIA(rpm)

Φ160

MAIN   SAW  SPINDLE    SPEED(rpm)

6000

SHAPER SPINDLE POWER(KW)

11

MAIN SAW SPINDLE POWER(KW)

4

SCORE  SAW POWER(KW)

0.75

WORKING TABLE DRIVE MOTOR POWER(KW)

0.75

TOTAL POWER(KW)

16.5

WORKING  AIR PRESSURE(MPA)

0.8

OVERALL DIMENSIONS(mm)

2700x1730x1550

NET WEIGHT(kg)

1800
