Rip Saw VH-JM164
Device Picture
Main Technical Data
|
SPECIFICATION AND MODEL |
MJ164 |
|
Max.Saw blade diameter(mm) |
> Φ455 |
|
Max.working width(mm) |
> Φ355 |
|
Max.working thickness(mm) |
120 |
|
Cut width(mm) |
660 |
|
Main spindle revolution(r/min) |
3000 |
|
Spindle diameter(mm) |
Φ50.8 |
|
Feeding speed(m/min) |
11--25 |
|
Feed motor power(kw) |
2.2kw |
|
Main motor(kw) |
11 |
|
Lubricate pump motor power(kw) |
20 |
|
Total power(kw) |
12.5 |
|
Working table sizer(mm) |
>2000x1160 |
|
Dimension(mm) |
>2300x1200x1500 |
|
Net weight(kg) |
1800 |
Detail
ELECTRONIC/PNEUMATIC/CONTROL CONFIGURATION
Saw blade under the working surface, so that the process of cutting more secure.
Auxiliary roller
8 sets of pressing wheel device to ensure the stability of the wood in the conveying process.
The DOUBLE-BRACK chain conveyer has wide working surface so that the material can be straightly, Precisely and smoothly.

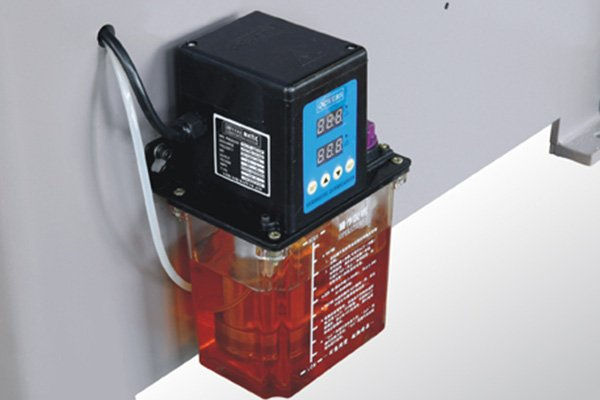

Automatic lubrication
Automatic controlled oil pump provides lubrication to all major parts to extend the machine service life.
Powered elevation device (option)
Worktable internal roller,convenience forprocessing and feeding back of big board.
Accurate fence and lock systemThe cast iron fence slide on the hard-chromium treatment round bar together with the lock system,that is providing accurate reading and position of the.
Lnfred alignm ent device can enable the saw to find its accurate position effciency.
Rebound prevention device can protect operators thorughly.
